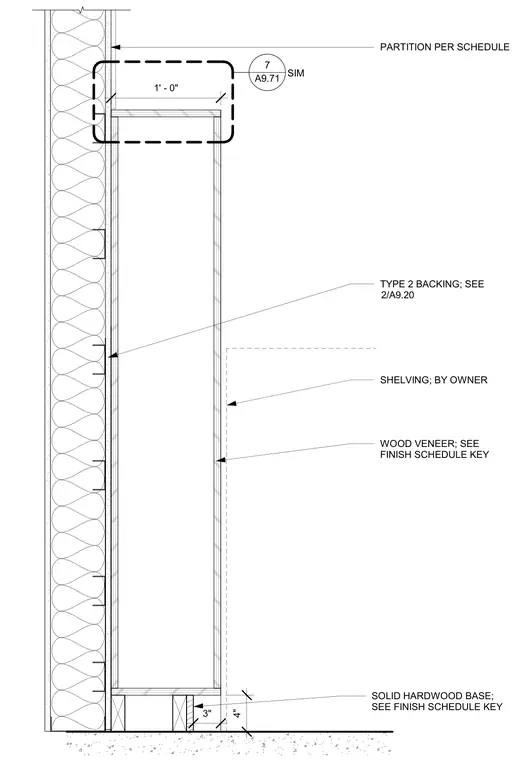

A solid panel library shelving unit is mounted against an insulated partition wall per the partition schedule. Type 2 backing is provided as detailed on sheet A9.20. The assembly features wood veneer finishes and shelving furnished by the owner. A solid hardwood base sits at the bottom with a 3 inch and 4 inch dimensioned clearance above the floor.
PARTITION PER SCHEDULE TYPE 2 BACKING; SEE SOLID HARDWOOD BASE; SEE FINISH SCHEDULE KEY 1' - 0" 3" WOOD VENEER; SEE FINISH SCHEDULE KEY 4" SHELVING; BY OWNER 2/A9.20 __________ A9.71 7 SIM
