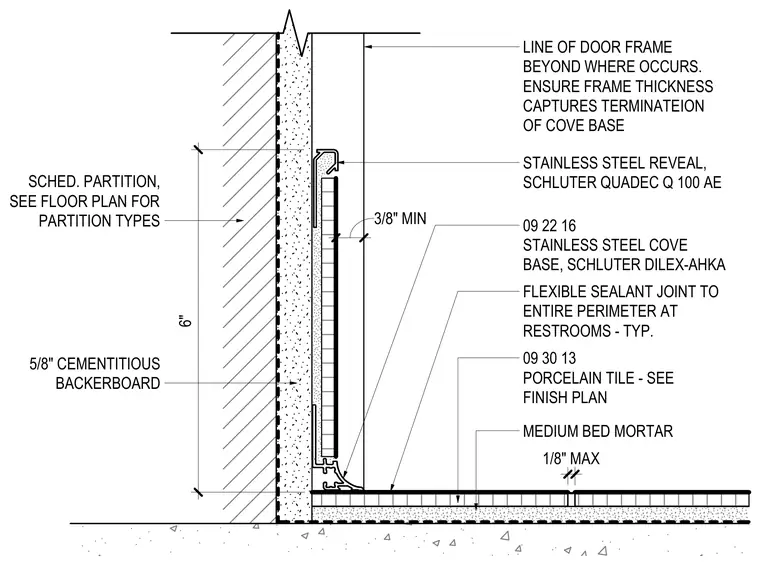

The intersection of a tiled restroom wall and floor assembly. A scheduled partition features five-eighths inch cementitious backerboard receiving medium bed mortar and porcelain tile. A six-inch stainless steel cove base with profile Schluter-DILEX-AHKA is installed at the floor transition, with a Schluter-QUADEC stainless steel reveal at the upper edge. A flexible sealant joint is applied to the entire perimeter at restrooms, and the door frame thickness is coordinated to capture the cove base termination.
SCHED. PARTITION, SEE FLOOR PLAN FOR PARTITION TYPES 5/8" CEMENTITIOUS BACKERBOARD 09 30 13 PORCELAIN TILE - SEE FINISH PLAN FLEXIBLE SEALANT JOINT TO ENTIRE PERIMETER AT RESTROOMS - TYP. MEDIUM BED MORTAR 09 22 16 STAINLESS STEEL COVE BASE, SCHLUTER DILEX-AHKA LINE OF DOOR FRAME BEYOND WHERE OCCURS. ENSURE FRAME THICKNESS CAPTURES TERMINATEION OF COVE BASE 1/8" MAX 3/8" MIN 6" STAINLESS STEEL REVEAL, SCHLUTER QUADEC Q 100 AE
