Manual swinging doors and gates require specific maneuvering clearances for accessibility compliance on the push side hinge approach when equipped with both a door closer and a latch. The required minimum clearance extends forty-eight inches perpendicular to the doorway and twenty-two inches minimum beyond the latch side.

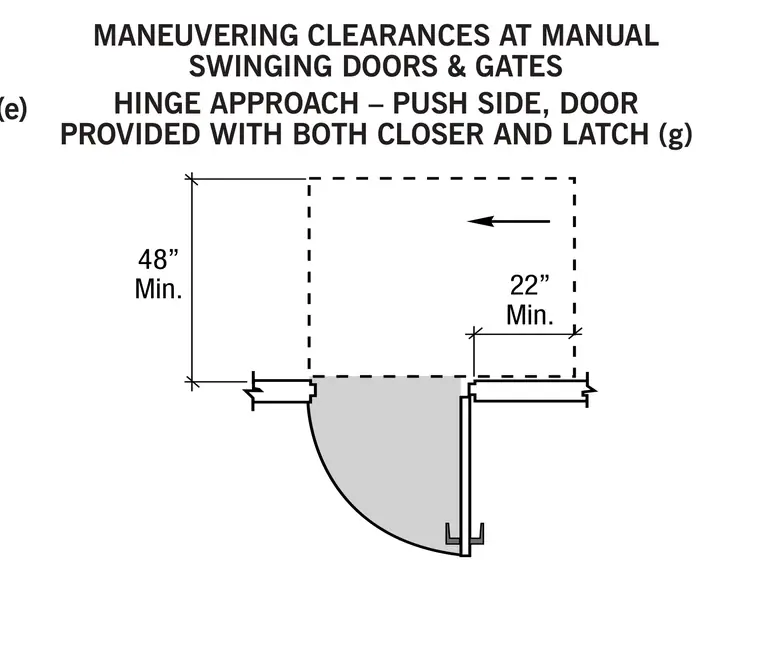

HINGE APPROACH – PULL SIDE (ADA ONLY) (e) MANEUVERING CLEARANCES AT MANUAL HINGE APPROACH – PUSH SIDE, DOOR PROVIDED WITH BOTH CLOSER AND LATCH (g) 48” Min. 22” Min. MANEUVERING CLEARANCES AT MANUAL SWINGING DOORS & GATES
