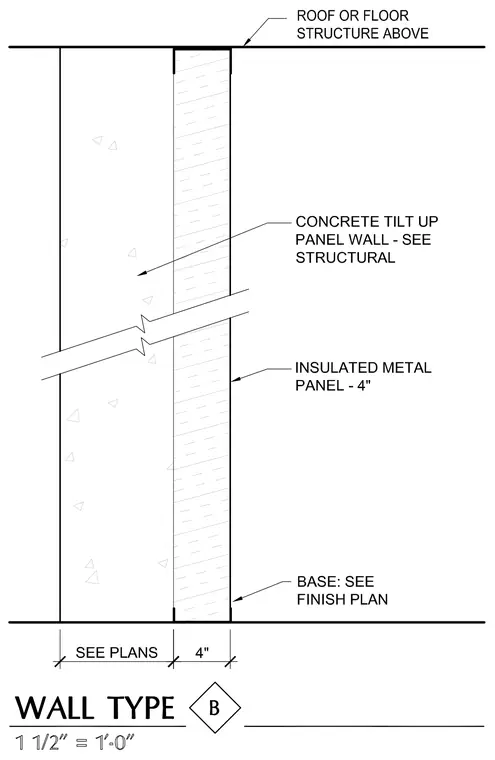

An exterior wall assembly consists of a concrete tilt-up panel wall paired with a four-inch insulated metal panel. The assembly bears below the roof or floor structure above. The concrete tilt-up panel thickness is sized per structural plans. The base condition transitions to finish plans.
