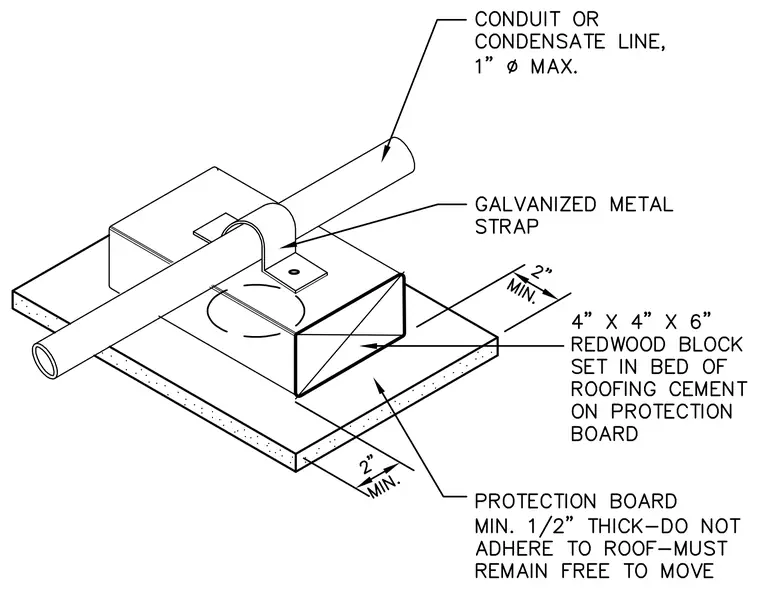

A conduit or condensate line with a maximum diameter of 1 inch is secured with a galvanized metal strap. The strap fastens to a 4-inch by 4-inch by 6-inch redwood block set in a bed of roofing cement on a protection board. The protection board has a minimum thickness of 1/2 inch and extends at least 2 inches beyond the block on each side. The protection board is unadhered to the roof membrane to remain free to move.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
