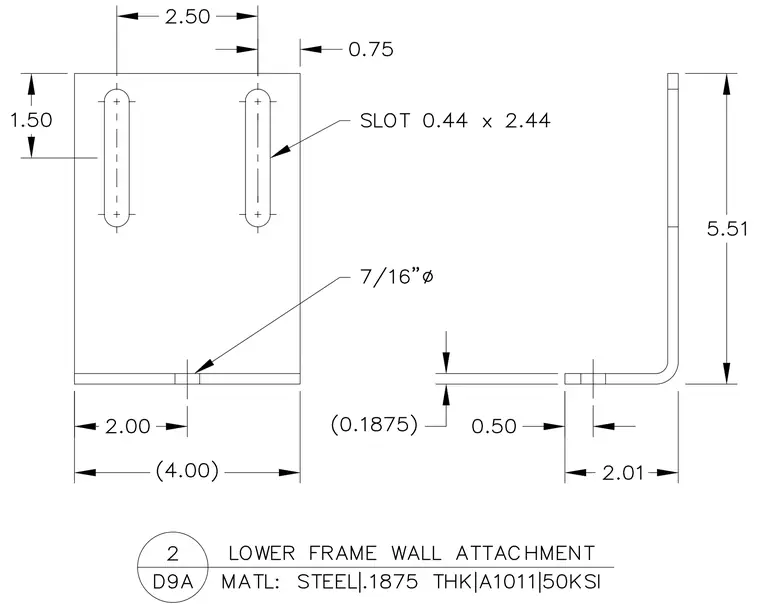

A formed steel angle bracket is fabricated from 0.1875 inch thick ASTM A1011 50 ksi steel. The vertical leg measures 5.51 inches high by 4.00 inches wide and features two vertical slotted holes measuring 0.44 inches by 2.44 inches. The horizontal leg extends 2.01 inches and contains a single 7/16-inch diameter drilled hole centered along the width.
(4.00) 2.50 1.50 0.75 2.00 SLOT 0.44 x 2.44 7/16"∅ 2.01 5.51 (0.1875) 0.50 LOWER FRAME WALL ATTACHMENT 2 D9A MATL: STEEL|.1875 THK|A1011|50KSI - + - + I + I I T J + 1 I
