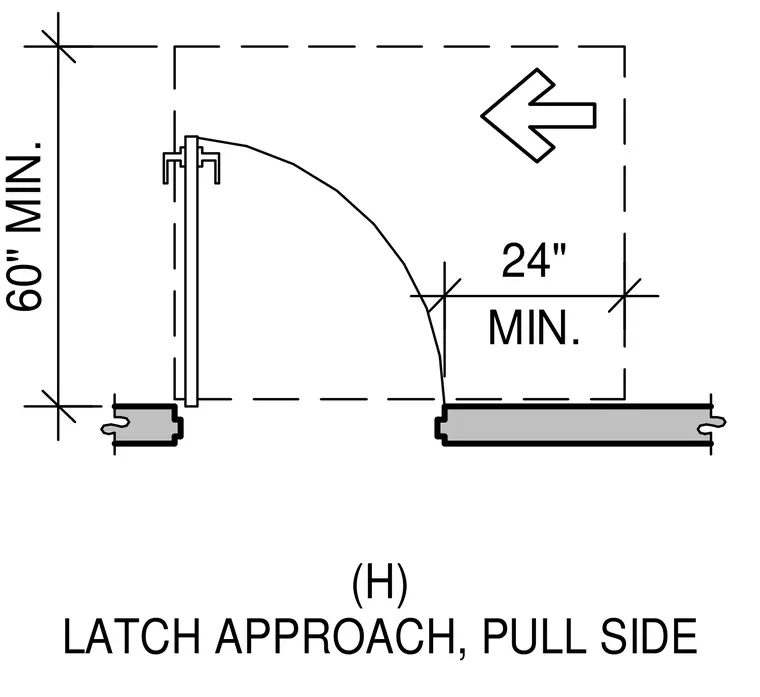

Accessible door clearance diagram indicating a minimum sixty-inch approach length and twenty-four-inch latch side clearance for pull-side door operation. The layout specifies required maneuvering space perpendicular and parallel to the door opening per accessibility standards.
60" MIN. 24" MIN. (H) LATCH APPROACH, PULL SIDE
