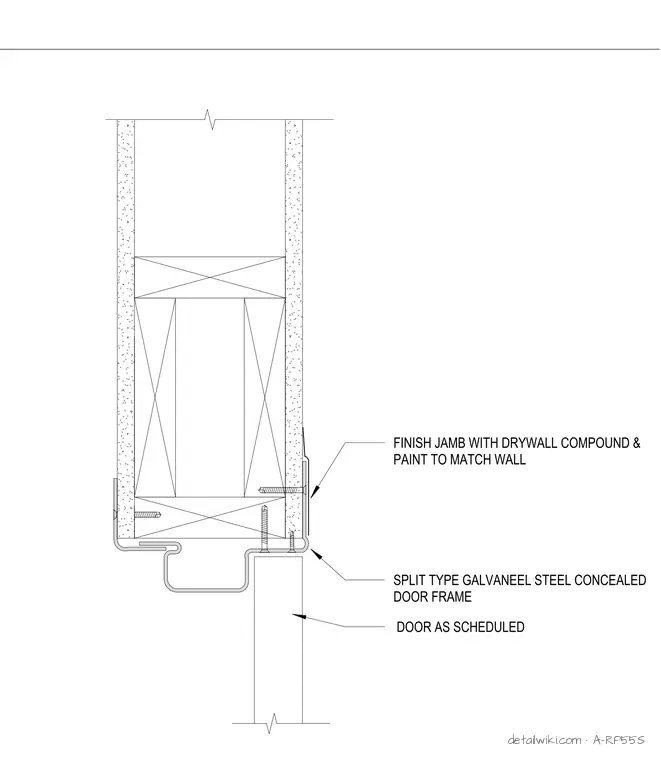

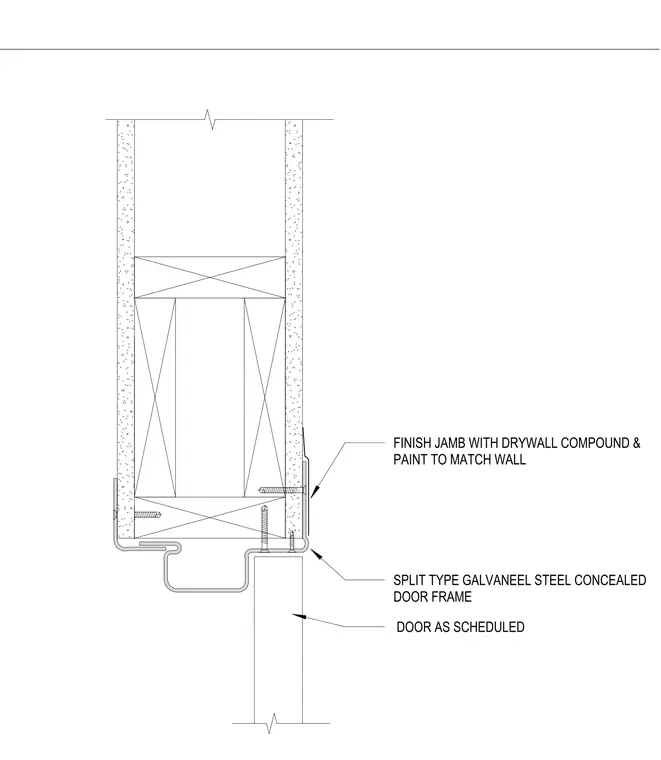

This assembly features a split-type Galvaneel steel concealed door frame mounted to a wood-framed wall with gypsum board on both sides. The frame is secured to the wood blocking with screws through the frame flange. The finish jamb is treated with drywall compound and painted to match the adjacent wall surface. The door leaf is installed within the frame profile as specified in the door schedule.
