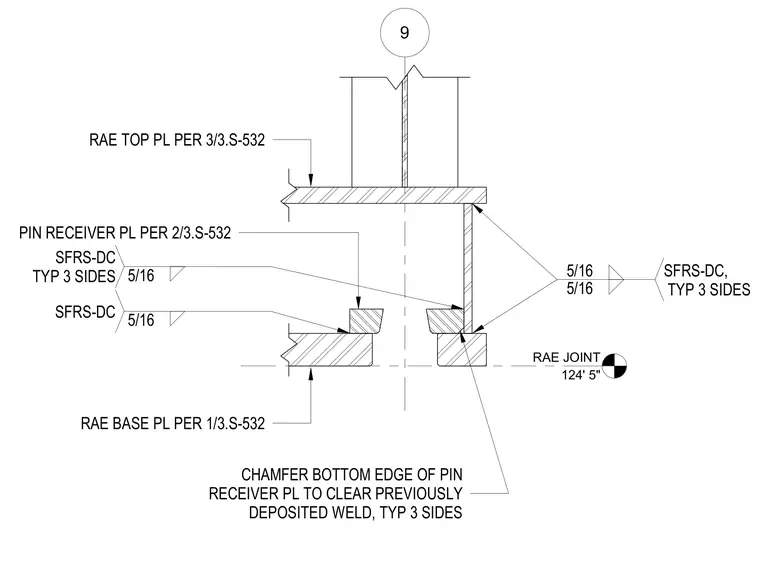

This structural connection detail features a Rae base plate supporting a pin receiver plate and a Rae top plate welded with five-sixteenths inch fillet welds on three sides using SFRS-DC welding. The bottom edge of the pin receiver plate is chamfered on three sides to clear previously deposited weld material. A Rae joint elevation of 124 feet 5 inches is designated at the base plate interface.
9 RAE BASE PL PER 1/3.S-532 PIN RECEIVER PL PER 2/3.S-532 RAE TOP PL PER 3/3.S-532 RAE JOINT 124' 5" 5/16 5/16 SFRS-DC, TYP 3 SIDES 5/16 SFRS-DC CHAMFER BOTTOM EDGE OF PIN RECEIVER PL TO CLEAR PREVIOUSLY DEPOSITED WELD, TYP 3 SIDES 5/16 SFRS-DC TYP 3 SIDES
