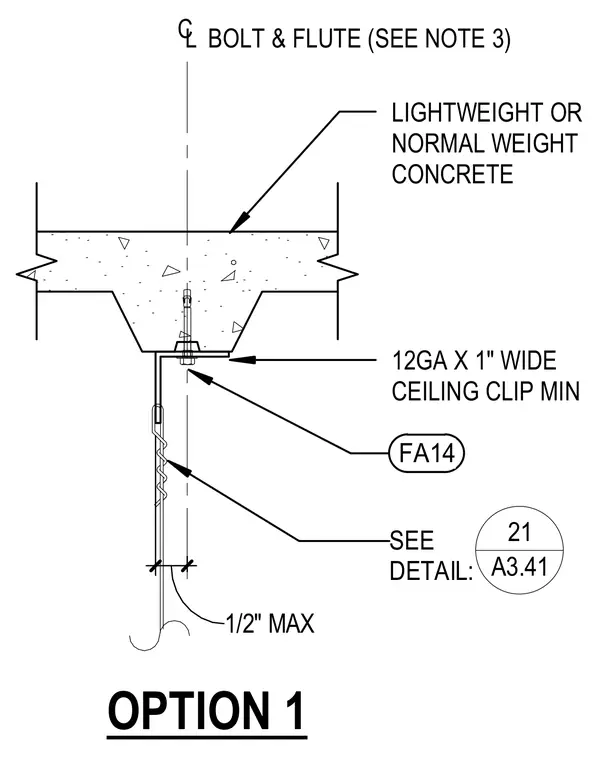

A twelve-gauge by one-inch wide minimum ceiling clip is anchored directly to the underside of a lightweight or normal weight concrete slab. The clip is secured within the concrete flute using a bolt aligned with the centerline of the flute. A hanger wire extends downward from the clip, terminating with a maximum half-inch clearance at the lower loop.
1/2" MAX CL BOLT & FLUTE (SEE NOTE 3) LIGHTWEIGHT OR NORMAL WEIGHT CONCRETE 12GA X 1" WIDE CEILING CLIP MIN OPTION 1 FA14 SEE DETAIL: 21 A3.41
