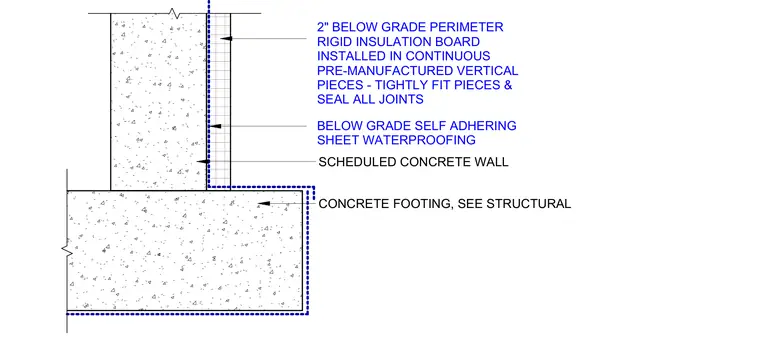

A scheduled concrete wall bears on a concrete footing detailed per structural drawings. Below-grade self-adhering sheet waterproofing is applied continuously over the exterior face of the concrete wall and footing. Two-inch below-grade perimeter rigid insulation board is installed in continuous pre-manufactured vertical pieces with tightly fitted pieces and sealed joints over the waterproofing.
BELOW GRADE SELF ADHERING SHEET WATERPROOFING 2" BELOW GRADE PERIMETER RIGID INSULATION BOARD INSTALLED IN CONTINUOUS PRE-MANUFACTURED VERTICAL PIECES - TIGHTLY FIT PIECES & SEAL ALL JOINTS SCHEDULED CONCRETE WALL CONCRETE FOOTING, SEE STRUCTURAL
