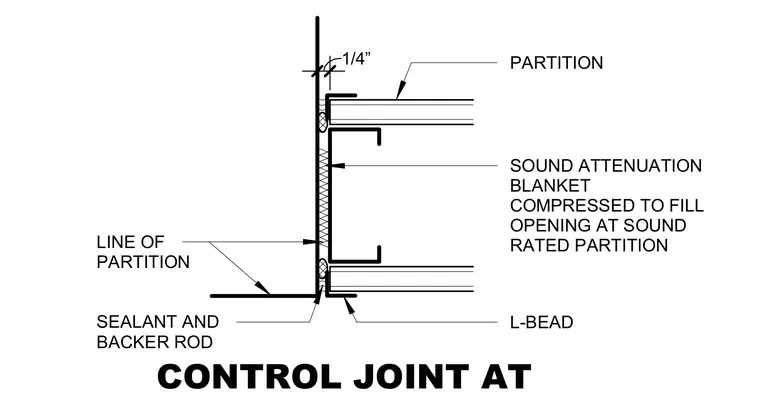

An interior partition intersection details a one-quarter inch control joint bounded by L-bead trim and sealed with backer rod and sealant. A compressed sound attenuation blanket fills the opening at the sound-rated partition assembly.
PARTITION SOUND ATTENUATION BLANKET COMPRESSED TO FILL OPENING AT SOUND RATED PARTITION L-BEAD SEALANT AND BACKER ROD LINE OF PARTITION 1/4” CONTROL JOINT AT
