Casework Upper and Lower Cabinets

Materials

Stainless Steel Timber / Wood Stone Glass / Glazing

Elements

Doors Facades / Cladding Ceilings Millwork / Casework

About this detail

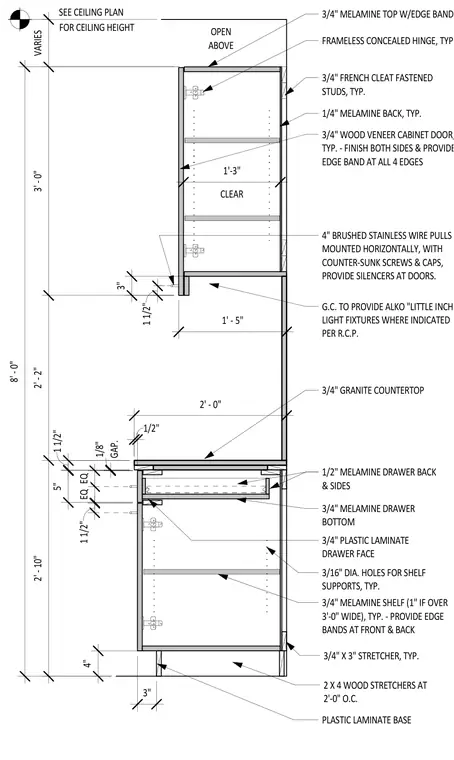

Upper and lower casework assemblies feature three-quarter-inch wood veneer cabinet doors finished on both sides with edge banding on all four edges. The upper cabinet hangs from three-quarter-inch French cleats fastened to wall studs and contains adjustable melamine shelves supported by three-sixteenth-inch diameter holes spaced evenly throughout. The base cabinet incorporates a plastic laminate drawer face, three-quarter-inch melamine drawer bottoms, and half-inch melamine drawer backs and sides, all resting on two-by-four wood stretchers spaced at two feet on center with a plastic laminate base. A three-quarter-inch granite countertop spans the lower cabinets with a designated gap for under-cabinet light fixtures provided by the general contractor per the reflected ceiling plan. Four-inch brushed stainless steel wire pulls are mounted horizontally with countersunk screws and caps, and door silencers are provided at all doors.
