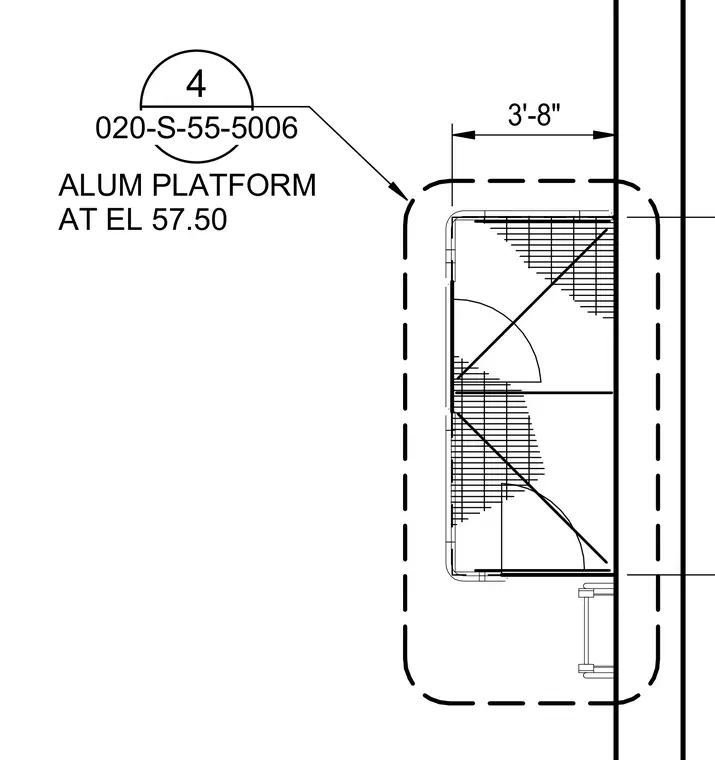

An aluminum platform projects three feet eight inches from a vertical structural element at elevation 57.50. The plan layout indicates grated or checkered flooring with framing and diagonal bracing. Access is provided via a ladder or stair element at the lower corner.
