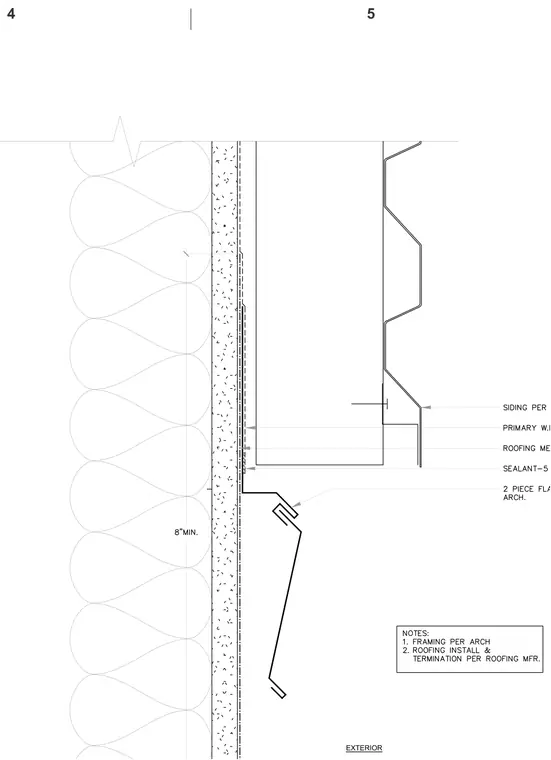

An exterior wall assembly includes siding per architecture, a primary weather-resistive barrier, a roofing membrane, and a sealant joint. A two-piece flashing per architecture ties into the exterior finish. Framing is per architecture, and roofing installation and termination follow the roofing manufacturer requirements with an 8-inch minimum clearance.
