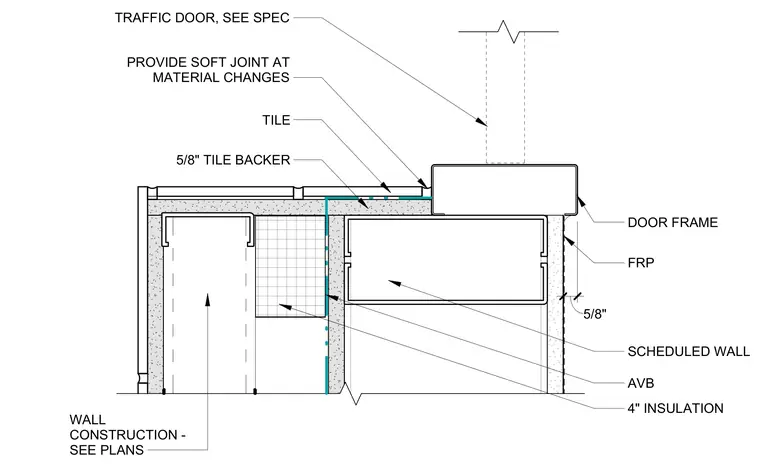

A traffic door frame with a fiberglass reinforced plastic finish sets against a scheduled wall construction containing four inches of insulation and an air and vapor barrier. A five-eighths-inch tile backer board receives a tile finish meeting the door frame, with a soft joint provided at material changes. Wall construction is sized per plans.
TRAFFIC DOOR, SEE SPEC WALL CONSTRUCTION - SEE PLANS 5/8" TILE BACKER TILE PROVIDE SOFT JOINT AT MATERIAL CHANGES FRP DOOR FRAME 5/8" AVB 4" INSULATION SCHEDULED WALL
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
