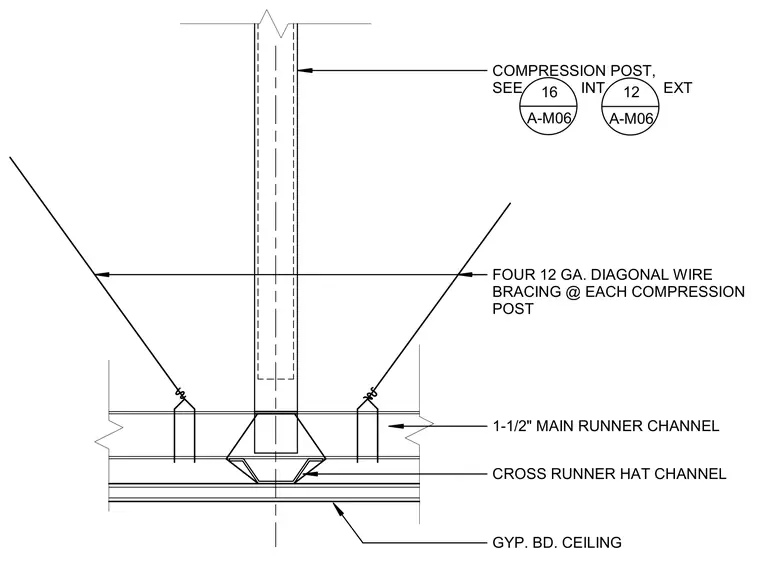

Suspended drywall ceiling framing featuring a compression post stabilized by four twelve-gauge diagonal wire braces at each post location. The framing system integrates one-and-one-half-inch main runner channels supporting cross runner hat channels. A gypsum board ceiling finish attaches to the lower framing. The compression post connects upward to structural support referenced on sheet A-M06.
FOUR 12 GA. DIAGONAL WIRE BRACING @ EACH COMPRESSION POST 1-1/2" MAIN RUNNER CHANNEL CROSS RUNNER HAT CHANNEL GYP. BD. CEILING COMPRESSION POST, SEE INT EXT 16 A-M06 12 A-M06
