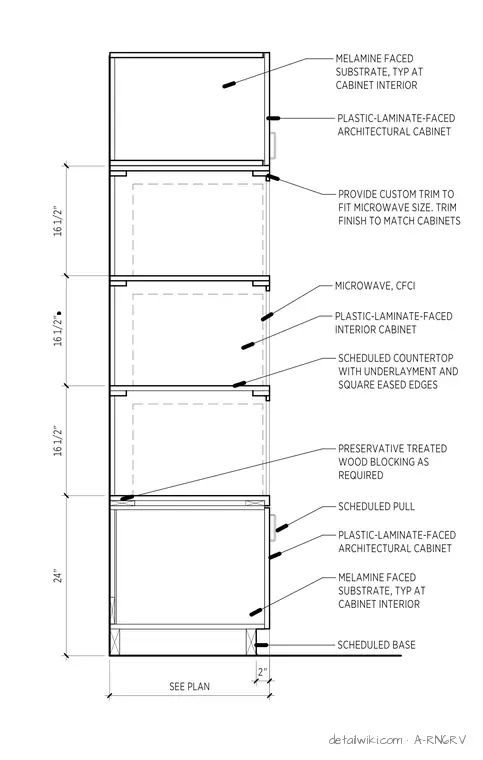

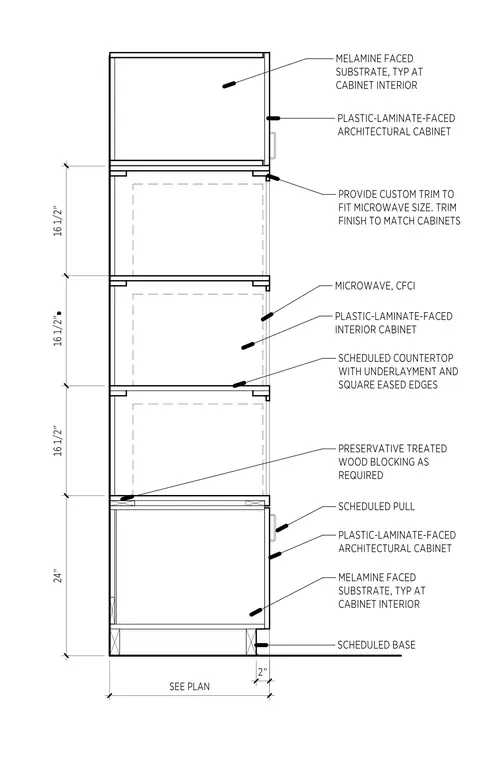

This millwork section details a tall cabinet assembly with a dedicated microwave opening. The unit is constructed with plastic-laminate-faced architectural cabinetry and melamine-faced substrates at the interior. The microwave opening is sized at 16 1/2 inches high, with custom trim provided to match the cabinet finish. The assembly includes a scheduled countertop with underlayment and square eased edges, supported by preservative-treated wood blocking as required. The base cabinet features a scheduled pull and sits on a scheduled base with a 2-inch toe kick depth.
