Six-inch metal stud framing provides the structural core for this interior partition wall, with stud spacing determined by the structural drawings. Sound attenuation batt insulation fills the stud cavity for acoustic performance. One-half-inch gypsum sheathing and a half-inch backer board finish the wall faces, with final finishes designated in the finish schedule.

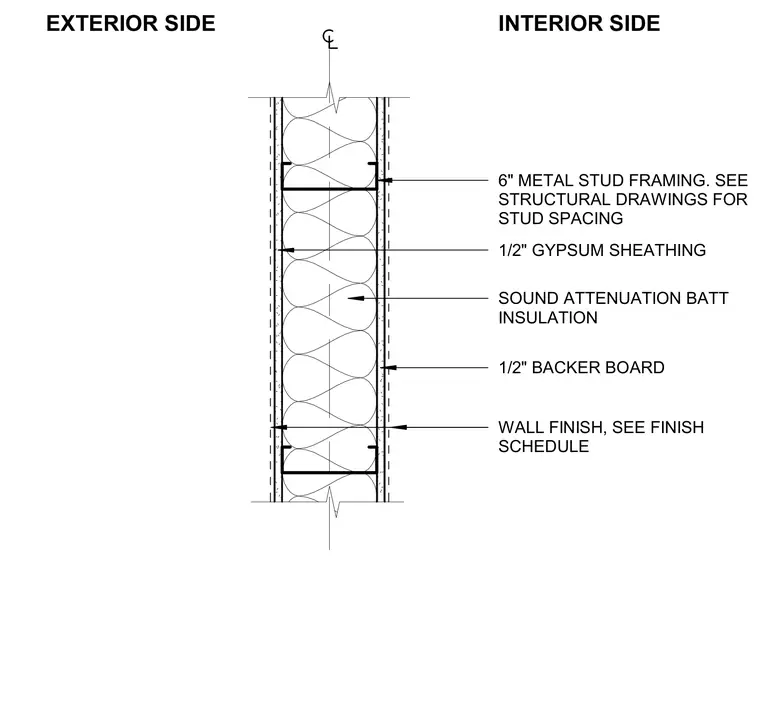

INTERIOR SIDE 6" METAL STUD FRAMING. SEE STRUCTURAL DRAWINGS FOR STUD SPACING SOUND ATTENUATION BATT INSULATION EXTERIOR SIDE 1/2" BACKER BOARD 1/2" GYPSUM SHEATHING WALL FINISH, SEE FINISH SCHEDULE
