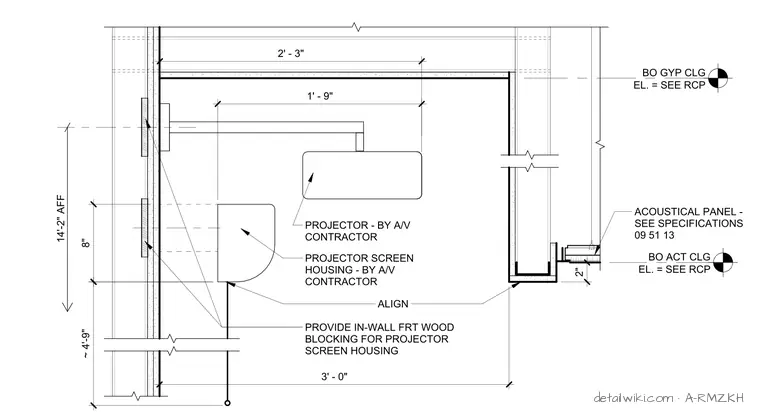

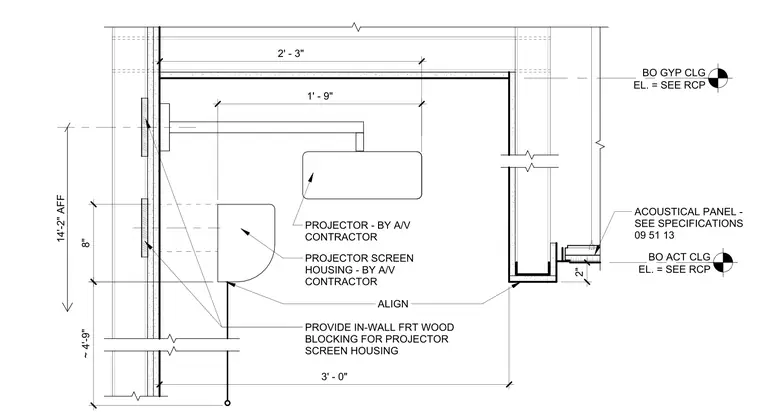

A projector and projector screen housing mount to a wall via fire-retardant treated wood blocking. The projector screen housing aligns with the edge of a recessed ceiling pocket. The ceiling assembly consists of gypsum board and an acoustical panel ceiling, with elevations referenced to the reflected ceiling plan. The audio-visual contractor provides and installs the projector and screen housing.
