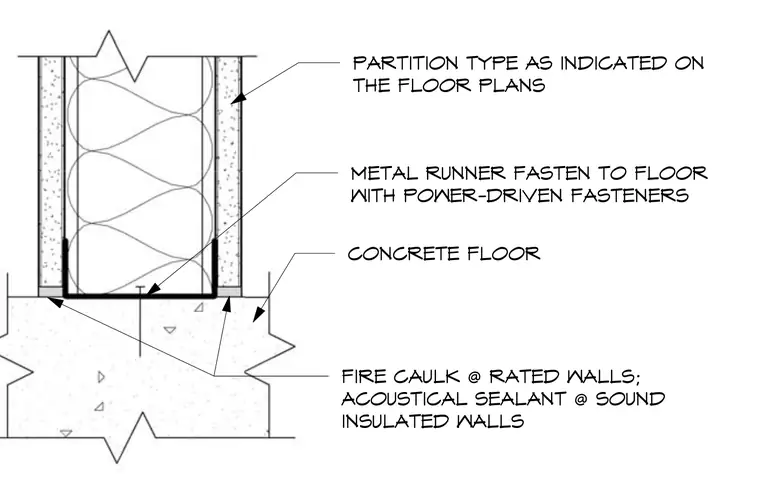

A metal runner track is fastened directly to the concrete floor using power-driven fasteners. Partition types are installed as indicated on the floor plans. Fire caulk is applied at rated walls, while acoustical sealant is applied at sound-insulated walls.
CONCRETE FLOOR METAL RUNNER FASTEN TO FLOOR WITH POWER-DRIVEN FASTENERS PARTITION TYPE AS INDICATED ON THE FLOOR PLANS FIRE CAULK @ RATED WALLS; ACOUSTICAL SEALANT @ SOUND INSULATED WALLS
