Architectural · A-RMRZW

ADA Restroom Signage Types 5 and 8A

Materials

Elements

About this detail

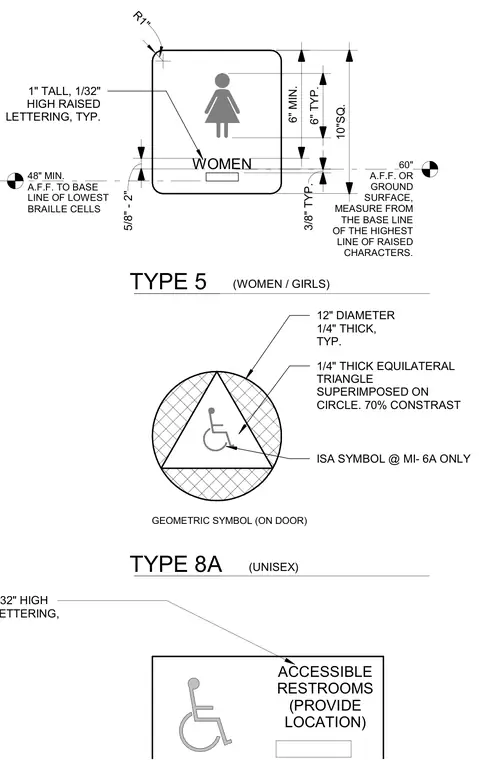

Accessible restroom signage details indicate mounting heights and dimensional requirements for tactile characters and geometric symbols. The Type 5 sign measures ten inches square with one-inch tall raised lettering and braille cells positioned forty-eight inches minimum above the finished floor. The Type 8A geometric symbol features a one-quarter inch thick equilateral triangle superimposed on a twelve-inch diameter circle with seventy percent contrast.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
