This wall-mounted upper cabinet assembly is secured with a continuous French cleat and a one-inch scribe at the top for full-height conditions against a ceiling or soffit. The interior contains two adjustable shelves with finishes as scheduled. The cabinet is outfitted with four-inch brushed aluminum wire pulls and accommodates under-cabinet lighting where indicated.

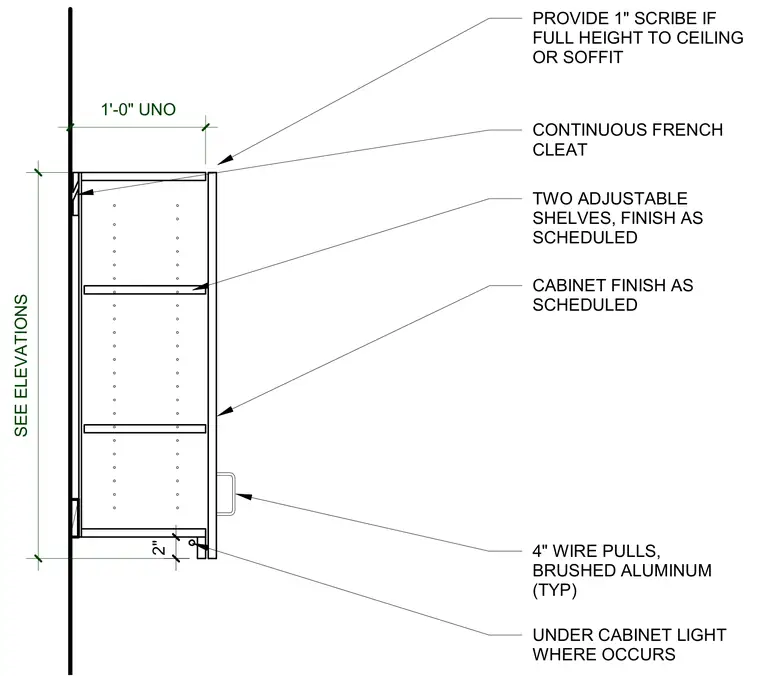

SEE ELEVATIONS 1'-0" UNO 4" WIRE PULLS, BRUSHED ALUMINUM (TYP) CABINET FINISH AS SCHEDULED TWO ADJUSTABLE SHELVES, FINISH AS SCHEDULED CONTINUOUS FRENCH CLEAT UNDER CABINET LIGHT WHERE OCCURS 2" PROVIDE 1" SCRIBE IF FULL HEIGHT TO CEILING OR SOFFIT
