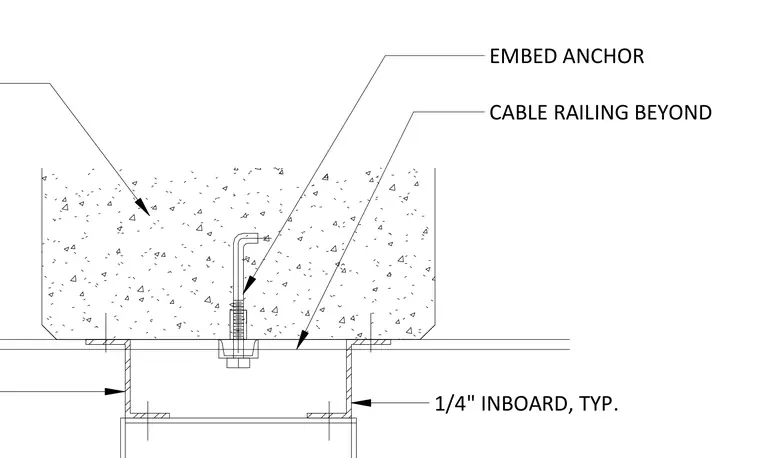

An embed anchor secures the cable railing assembly into the concrete element. The framing components are positioned one-quarter inch inboard typically.
1/4" INBOARD, TYP. EMBED ANCHOR CABLE RAILING BEYOND
