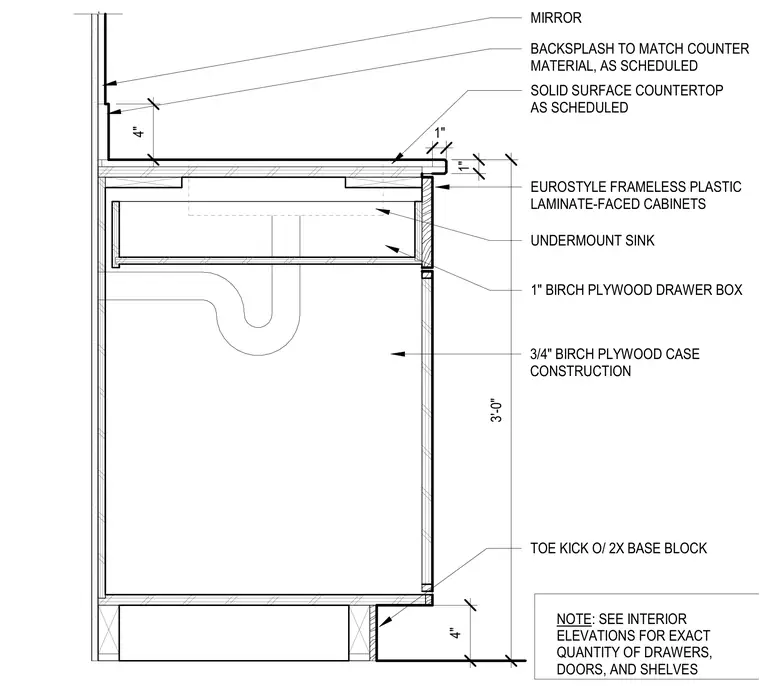

This interior millwork detail shows a bathroom vanity constructed with three-quarter-inch birch plywood case construction and Eurostyle frameless plastic laminate-faced cabinets. The assembly features a solid surface countertop with a matching backsplash and an undermount sink. A one-inch birch plywood drawer box is integrated beneath the counter. The base includes a toe kick constructed over a two-by-four wood base block, and a mirror is mounted above the backsplash.
BACKSPLASH TO MATCH COUNTER MATERIAL, AS SCHEDULED MIRROR SOLID SURFACE COUNTERTOP AS SCHEDULED TOE KICK O/ 2X BASE BLOCK 3/4" BIRCH PLYWOOD CASE CONSTRUCTION 1" BIRCH PLYWOOD DRAWER BOX EUROSTYLE FRAMELESS PLASTIC LAMINATE-FACED CABINETS 4" 1" 1" 4" 3'-0" NOTE: SEE INTERIOR ELEVATIONS FOR EXACT QUANTITY OF DRAWERS, DOORS, AND SHELVES UNDERMOUNT SINK
