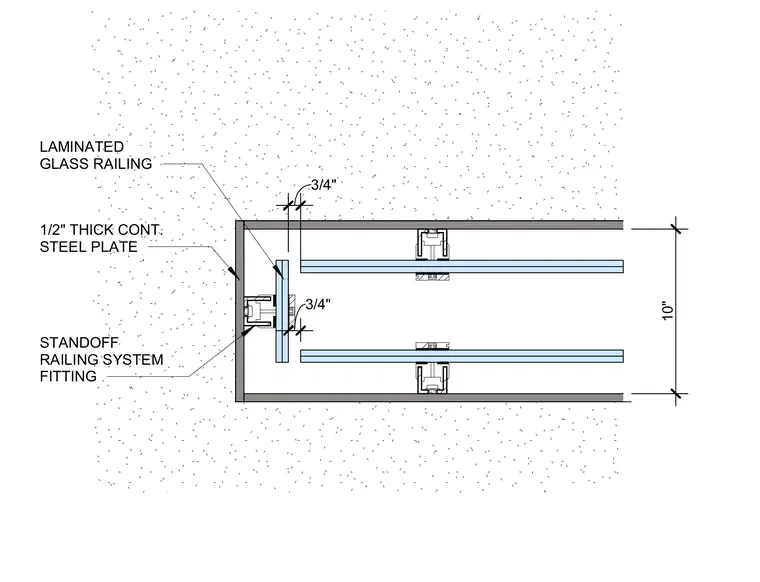

A laminated glass railing system is anchored to a continuous one-half-inch-thick steel plate utilizing standoff railing system fittings. The assembly is detailed with specific dimensional clearances of three-quarters of an inch around the glass mounting points and spans a ten-inch overall thickness at the floor edge.
3/4" 3/4" 1/2" THICK CONT. STEEL PLATE LAMINATED GLASS RAILING STANDOFF RAILING SYSTEM FITTING 10"
