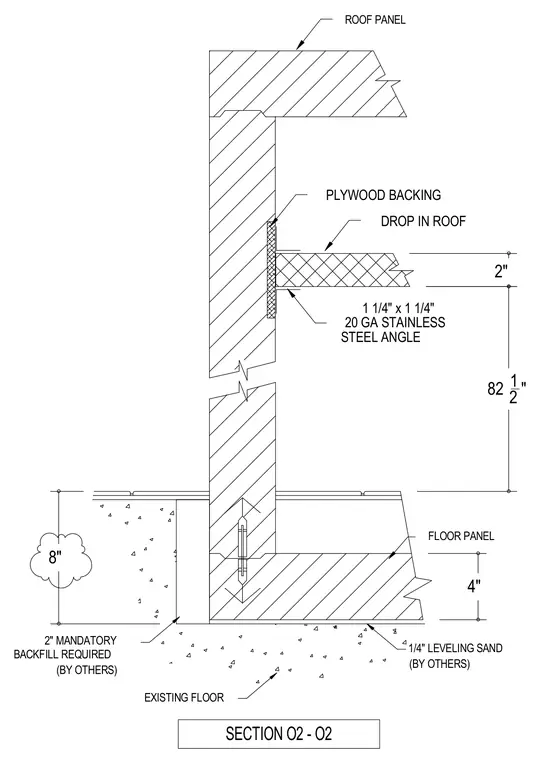

This wall section details a drop-in roof connection bearing against a vertical panel with a plywood backing. A 1 1/4 inch by 1 1/4 inch, 20 gauge stainless steel angle supports the drop-in roof assembly. The vertical assembly interfaces with a floor panel resting on an existing floor over a 1/4 inch leveling sand layer and mandatory 2 inch backfill. Key dimensions include an 82 1/2 inch vertical spacing between levels and an 8 inch backfill depth.
SECTION O2 - O2 82 1 2 " 2" 8" 4" ROOF PANEL DROP IN ROOF 1 1/4" x 1 1/4" 20 GA STAINLESS PLYWOOD BACKING STEEL ANGLE EXISTING FLOOR FLOOR PANEL 2" MANDATORY BACKFILL REQUIRED (BY OTHERS) 1/4" LEVELING SAND (BY OTHERS)
