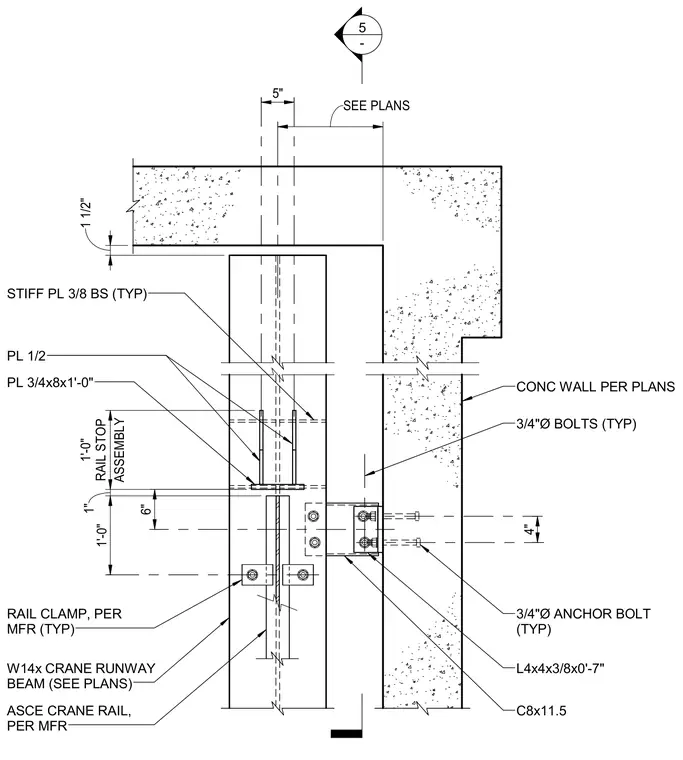

An ASCE crane rail sits atop a W14x crane runway beam, secured by typical rail clamps from the manufacturer. A one-foot rail stop assembly features a 3/4-inch by 8-inch by 1-foot-0-inch plate with 3/8-inch stiffener plates. The runway beam connects to the concrete wall via a C8x11.5 channel, L4x4x3/8-inch by 0-foot-7-inch angles, and typical 3/4-inch diameter anchor bolts and bolts sized per plans.
W14x CRANE RUNWAY BEAM (SEE PLANS) CONC WALL PER PLANS 5" SEE PLANS 5 - 4" 1'-0" 1" ASSEMBLY 1'-0" RAIL STOP 1 1/2" 6" 3/4"Ø ANCHOR BOLT (TYP) 3/4"Ø BOLTS (TYP) L4x4x3/8x0'-7" C8x11.5 PL 3/4x8x1'-0" STIFF PL 3/8 BS (TYP) ASCE CRANE RAIL, PER MFR PL 1/2 RAIL CLAMP, PER MFR (TYP)
