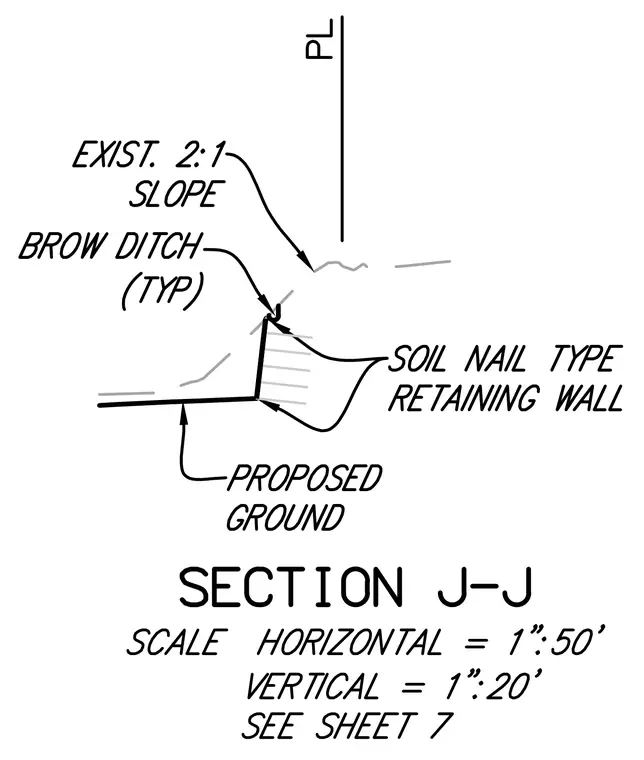

This cross-section details a soil nail retaining wall constructed adjacent to an existing two-to-one slope. A typical brow ditch sits at the top of the wall to manage surface runoff. The property line is indicated above the existing slope, and the proposed ground level establishes the base of the excavation.
