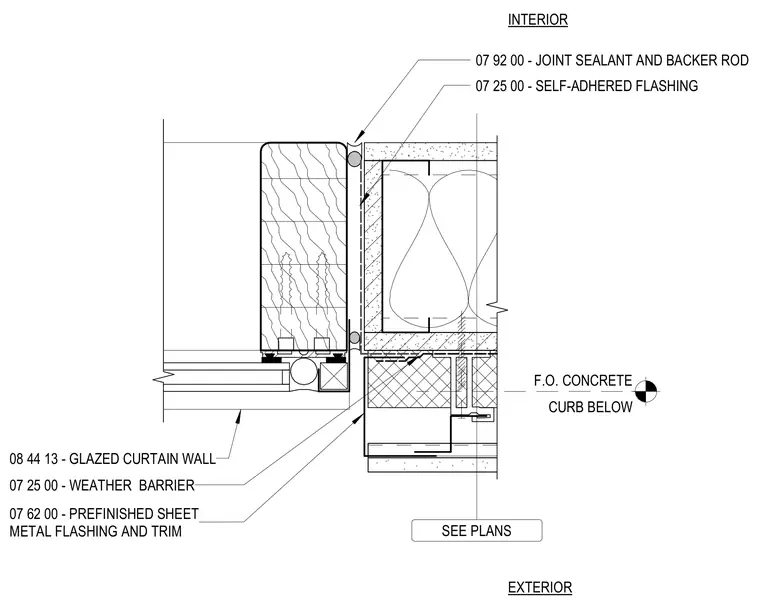

The jamb transition occurs between a glazed curtain wall and an exterior wall assembly with a concrete curb below. A continuous weather barrier and self-adhered flashing tie the wall membrane to the framing edge. Prefinished sheet metal flashing and trim protect the exterior corner condition. Joint sealant with a backer rod seals the interior perimeter gap between the framing and the glazing system.
EXTERIOR INTERIOR F.O. CONCRETE CURB BELOW SEE PLANS 08 44 13 - GLAZED CURTAIN WALL 07 62 00 - PREFINISHED SHEET METAL FLASHING AND TRIM 07 92 00 - JOINT SEALANT AND BACKER ROD 07 25 00 - SELF-ADHERED FLASHING 07 25 00 - WEATHER BARRIER
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
