A stainless steel corner guard with a number 4 satin finish is fitted to a wall corner. The guard is made from 16 gauge material, measuring 0.059 inches thick with a one-eighth inch radius at the bend. Each leg extends one and one-half inches from the corner. The standard length is eight feet, placed above the base unless noted otherwise.

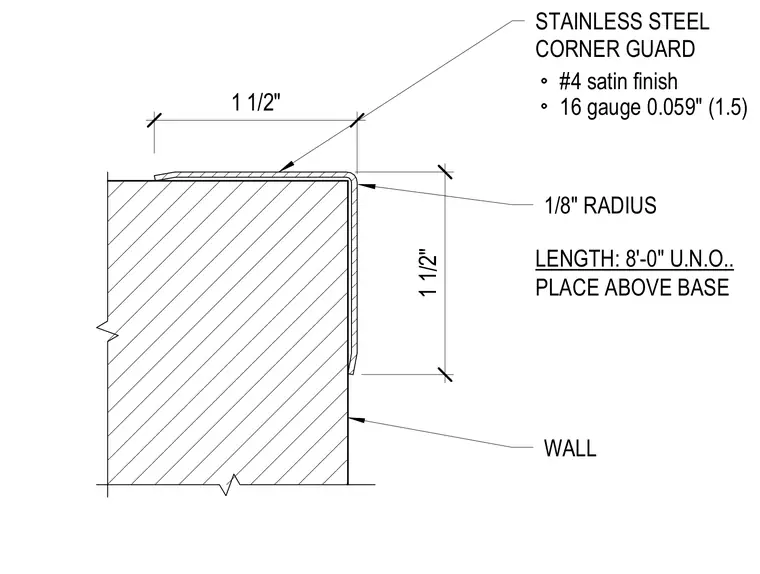

STAINLESS STEEL CORNER GUARD #4 satin finish 16 gauge 0.059" (1.5) 1/8" RADIUS LENGTH: 8'-0" U.N.O.. PLACE ABOVE BASE 1 1/2" WALL 1 1/2"
