The transition between a sealed concrete sub-floor and a walk-off mat utilizes a Schluter Reno-Ramp flooring transition profile with a one-to-two maximum slope. The concrete sub-floor is anchored per structural drawings while the walk-off mat thickness is coordinated with the finish schedule. All flooring transitions are maintained at no greater than one-half inch typically.

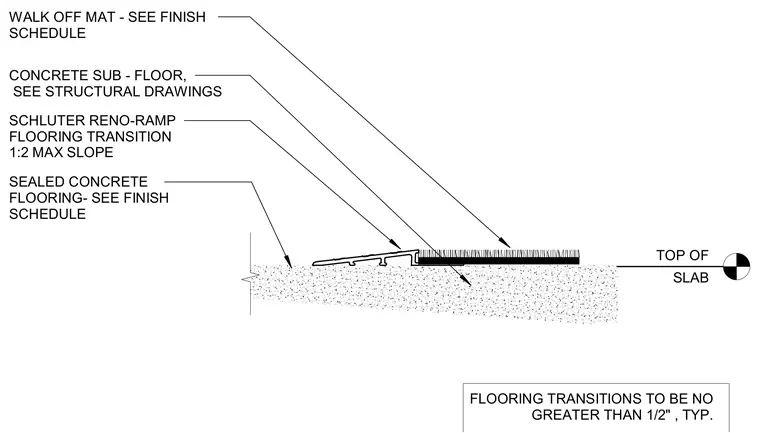

SLAB TOP OF SCHLUTER RENO-RAMP FLOORING TRANSITION 1:2 MAX SLOPE SEALED CONCRETE FLOORING- SEE FINISH SCHEDULE CONCRETE SUB - FLOOR, SEE STRUCTURAL DRAWINGS WALK OFF MAT - SEE FINISH SCHEDULE FLOORING TRANSITIONS TO BE NO GREATER THAN 1/2" , TYP.
