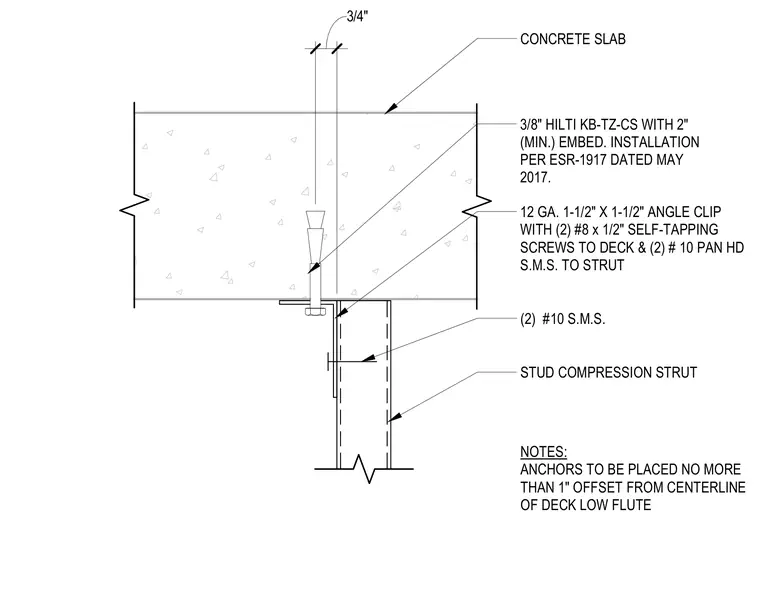

A stud compression strut terminates below a concrete slab and connects via a 12 gauge 1-1/2-inch by 1-1/2-inch angle clip. Two number 8 by 1/2-inch self-tapping screws secure the angle clip to the deck, while two number 10 pan head sheet metal screws fasten it to the strut. A 3/8-inch Hilti KB-TZ-CS wedge anchor with a minimum 2-inch embedment anchors the assembly into the concrete slab, positioned no more than 1 inch offset from the centerline of the deck low flute.
NOTES: ANCHORS TO BE PLACED NO MORE THAN 1" OFFSET FROM CENTERLINE OF DECK LOW FLUTE 3/8" HILTI KB-TZ-CS WITH 2" (MIN.) EMBED. INSTALLATION PER ESR-1917 DATED MAY 2017. 12 GA. 1-1/2" X 1-1/2" ANGLE CLIP WITH (2) #8 x 1/2" SELF-TAPPING SCREWS TO DECK & (2) # 10 PAN HD S.M.S. TO STRUT STUD COMPRESSION STRUT CONCRETE SLAB (2) #10 S.M.S. 3/4"
