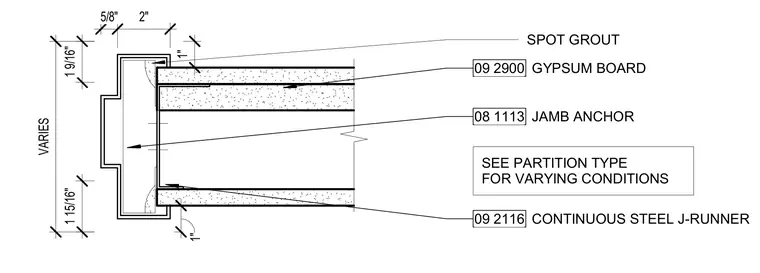

A hollow metal door jamb anchors to a gypsum board partition assembly. A continuous steel J-runner frames the opening with gypsum board layers attached on each side. The jamb anchor secures the frame, and spot grout fills the void around the anchor condition.
SEE PARTITION TYPE FOR VARYING CONDITIONS 09 2900 GYPSUM BOARD SPOT GROUT VARIES 08 1113 JAMB ANCHOR 09 2116 CONTINUOUS STEEL J-RUNNER 5/8" 2" 1" 1 9/16" 1 15/16" 1"
