A precast concrete member connects to a door header assembly with anchor bolts spaced at three feet on center and shims as required. Sealant and backer rod are installed at each side of the precast joint. A cold-formed metal stud and gypsum board partition ties into the assembly at the transition.

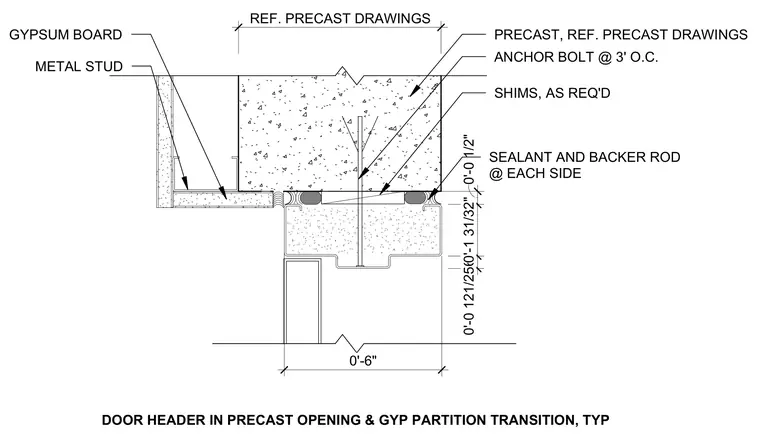

REF. PRECAST DRAWINGS 0'-0 121/256"0'-1 31/32" 0'-0 1/2" 0'-6" SEALANT AND BACKER ROD @ EACH SIDE PRECAST, REF. PRECAST DRAWINGS GYPSUM BOARD METAL STUD ANCHOR BOLT @ 3' O.C. SHIMS, AS REQ'D DOOR HEADER IN PRECAST OPENING & GYP PARTITION TRANSITION, TYP
