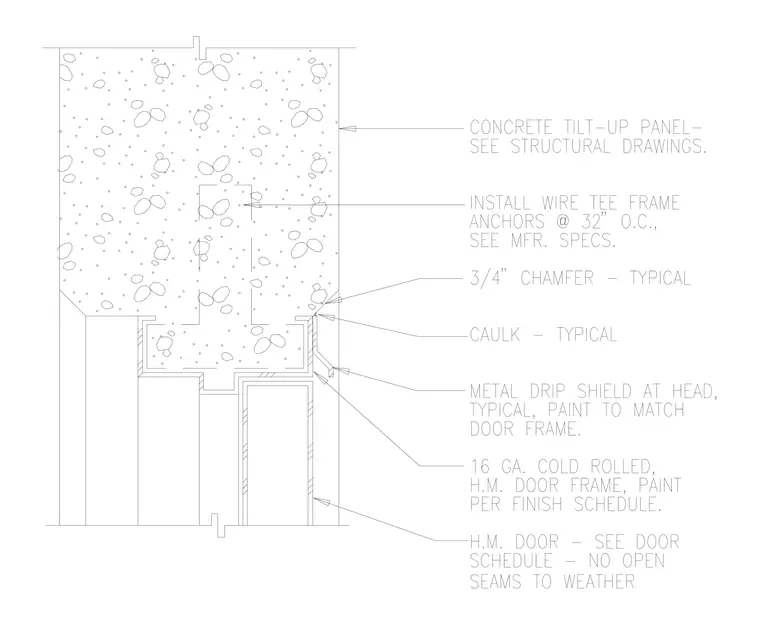

A concrete tilt-up wall panel frames a hollow metal door opening with wire tee frame anchors spaced at thirty-two inches on center. A three-quarter-inch chamfer is provided at the concrete corner with a continuous caulk joint. A metal drip shield is installed at the door head and painted to match the frame. The sixteen-gauge cold-rolled hollow metal door frame receives a finish coat per the finish schedule. A hollow metal door is set within the frame with no open seams exposed to weather.
