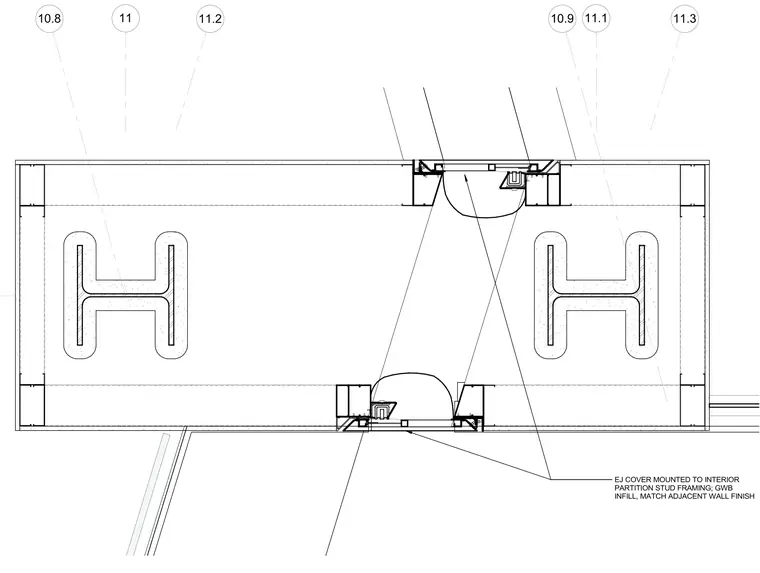

An interior expansion joint cover assembly is surface-mounted to partition stud framing and finished with gypsum board infill to match the adjacent wall finish. The expansion joint accommodates lateral movement between adjacent interior wall sections while maintaining a flush, continuous architectural appearance.
11 11.1 11.2 11.3 EJ COVER MOUNTED TO INTERIOR PARTITION STUD FRAMING; GWB INFILL, MATCH ADJACENT WALL FINISH 10.8 10.9
