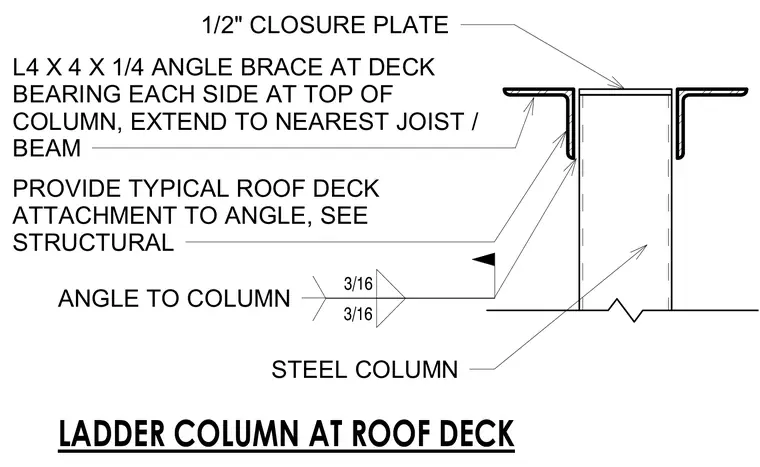

A steel ladder column connects at the roof deck using an L4 x 4 x 1/4 angle brace on each side at the top of the column, extending to the nearest joist or beam. A 1/2-inch closure plate caps the column top. The angles attach to the column with 3/16-inch fillet welds on both sides. Typical roof deck attachment to the angle is provided per structural drawings.
3/16 3/16 ANGLE TO COLUMN STEEL COLUMN PROVIDE TYPICAL ROOF DECK ATTACHMENT TO ANGLE, SEE STRUCTURAL 1/2" CLOSURE PLATE L4 X 4 X 1/4 ANGLE BRACE AT DECK BEARING EACH SIDE AT TOP OF COLUMN, EXTEND TO NEAREST JOIST / BEAM LADDER COLUMN AT ROOF DECK
