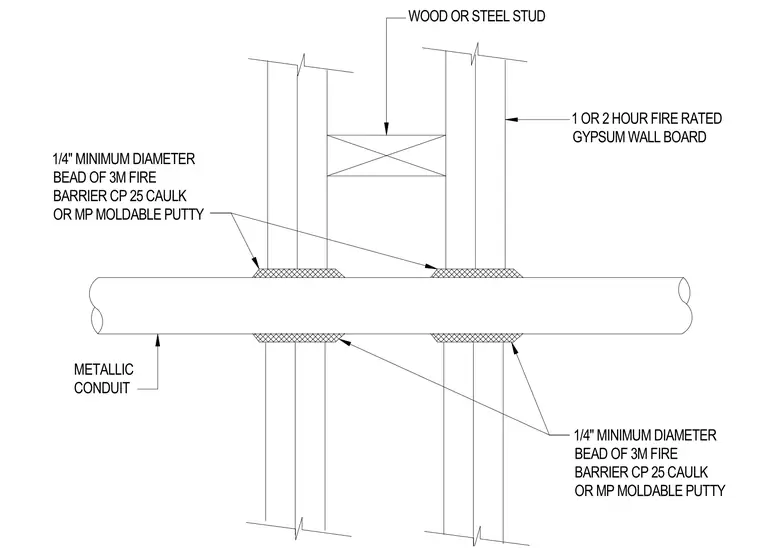

A metallic conduit penetrates a one or two hour fire-rated gypsum wall board assembly framed with wood or steel studs. The annular space around the conduit is sealed on each side of the wall assembly with a one-quarter inch minimum diameter bead of 3M Fire Barrier CP 25 caulk or MP moldable putty.
1/4" MINIMUM DIAMETER BEAD OF 3M FIRE BARRIER CP 25 CAULK OR MP MOLDABLE PUTTY 1/4" MINIMUM DIAMETER BEAD OF 3M FIRE BARRIER CP 25 CAULK OR MP MOLDABLE PUTTY METALLIC CONDUIT 1 OR 2 HOUR FIRE RATED GYPSUM WALL BOARD WOOD OR STEEL STUD
