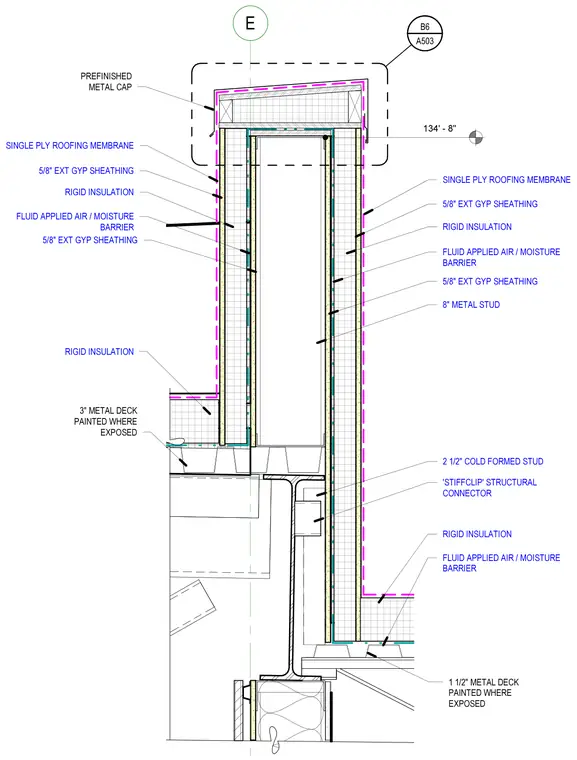

This pool area parapet assembly terminates with a prefinished metal cap over wood blocking and single ply roofing membrane. The exterior faces are clad with five-eighths inch exterior gypsum sheathing, rigid insulation, and a fluid applied air and moisture barrier over eight inch metal studs. The interior and exterior parapet walls tie into the roof deck using a structural connection with a Stiffclip connector and cold formed steel studs. The roof assembly below features a three inch metal deck on one side and a one and one-half inch metal deck painted where exposed on the other, both insulated and waterproofed with a continuous membrane.
E 134' - 8" A503 B6 SINGLE PLY ROOFING MEMBRANE 5/8" EXT GYP SHEATHING RIGID INSULATION FLUID APPLIED AIR / MOISTURE BARRIER 5/8" EXT GYP SHEATHING 8" METAL STUD 2 1/2" COLD FORMED STUD RIGID INSULATION FLUID APPLIED AIR / MOISTURE BARRIER 'STIFFCLIP' STRUCTURAL CONNECTOR 1 1/2" METAL DECK PAINTED WHERE EXPOSED PREFINISHED METAL CAP SINGLE PLY ROOFING MEMBRANE 5/8" EXT GYP SHEATHING RIGID INSULATION FLUID APPLIED AIR / MOISTURE BARRIER 5/8" EXT GYP SHEATHING RIGID INSULATION 3" METAL DECK PAINTED WHERE EXPOSED
