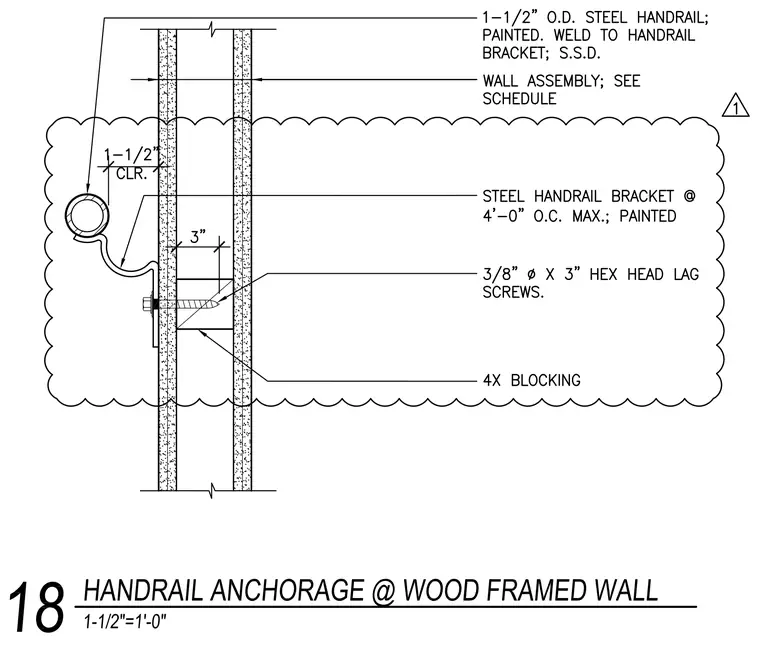

A one-and-a-half-inch outer diameter painted steel handrail is welded to a steel handrail bracket, maintaining a one-and-a-half-inch clearance from the wall assembly. The steel handrail bracket is spaced at four feet on center maximum and secured with three-eighths-inch diameter by three-inch hex head lag screws. The lag screws anchor directly through the wall assembly into four-times blocking. The wall assembly is finished per the architectural schedule.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
