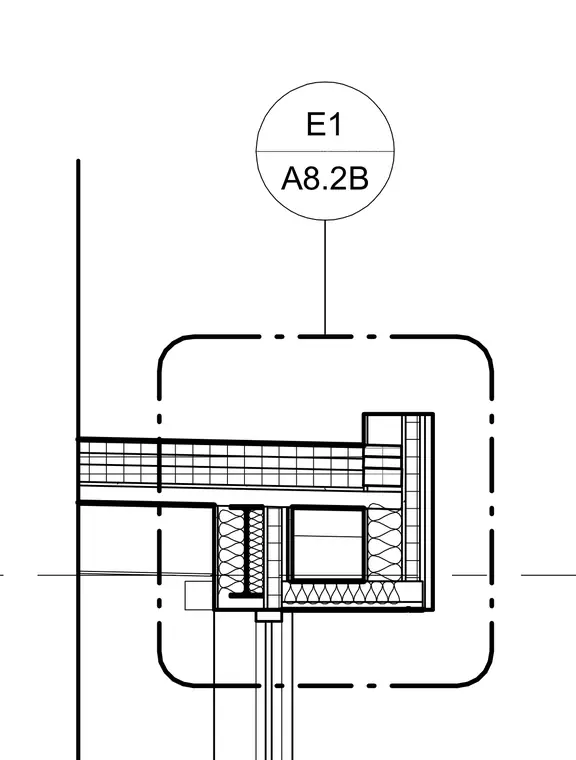

An exterior wall transitions to a soffit assembly featuring steel framing members, cavity insulation, and interior gypsum board finishes. The vertical wall assembly meets the horizontal soffit return with aligned sheathing and framing layers. A structural framing member provides support behind the exterior finish line.
