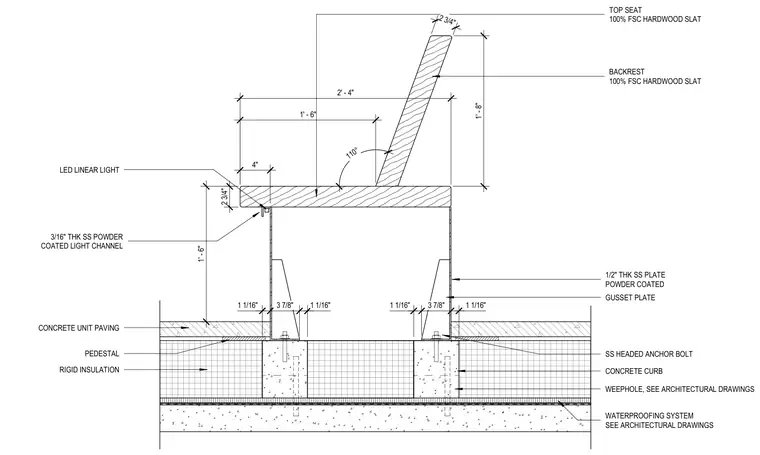

Linear bench assembly mounted over a concrete curb, featuring one hundred percent FSC hardwood slats forming the top seat and backrest set at a one hundred ten degree angle. The seat rests on a half-inch-thick powder-coated stainless steel plate structure stiffened with gusset plates and anchored to the concrete curb using stainless steel headed anchor bolts. A three-sixteenths-inch-thick powder-coated stainless steel light channel houses an LED linear light beneath the front edge of the seat. The assembly bears on a roof or podium deck build-up consisting of concrete unit paving on pedestals, rigid insulation, weepholes, and a waterproofing system over the structural concrete slab.
BACKREST 100% FSC HARDWOOD SLAT TOP SEAT 100% FSC HARDWOOD SLAT 1/2" THK SS PLATE POWDER COATED GUSSET PLATE SS HEADED ANCHOR BOLT CONCRETE CURB WATERPROOFING SYSTEM SEE ARCHITECTURAL DRAWINGS CONCRETE UNIT PAVING PEDESTAL RIGID INSULATION WEEPHOLE, SEE ARCHITECTURAL DRAWINGS 1 1/16" 3 7/8" 1 1/16" 4" 2 3/4" 1' - 6" 2 3/4" 1' - 8" 110° 1 1/16" 3 7/8" 1 1/16" 1' - 6" 2' - 4" 3/16" THK SS POWDER COATED LIGHT CHANNEL LED LINEAR LIGHT
