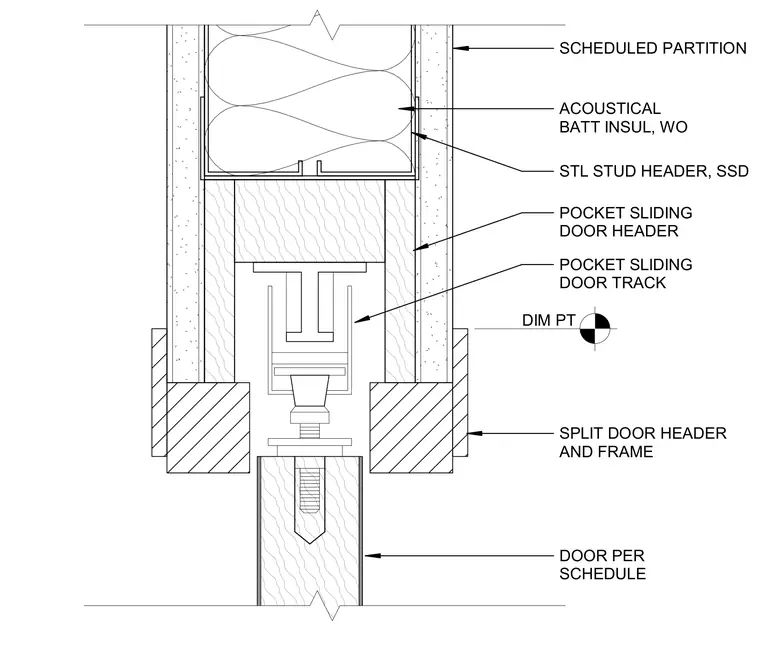

Acoustical batt insulation fills the steel stud header above the pocket assembly at the head condition of a pocket sliding door integrated into a scheduled partition. A pocket sliding door header supports the track mechanism, which is framed by split door headers and frames. A door per schedule hangs from the sliding door track.
DIM PT DOOR PER SCHEDULE STL STUD HEADER, SSD SCHEDULED PARTITION ACOUSTICAL BATT INSUL, WO POCKET SLIDING DOOR TRACK POCKET SLIDING DOOR HEADER SPLIT DOOR HEADER AND FRAME
