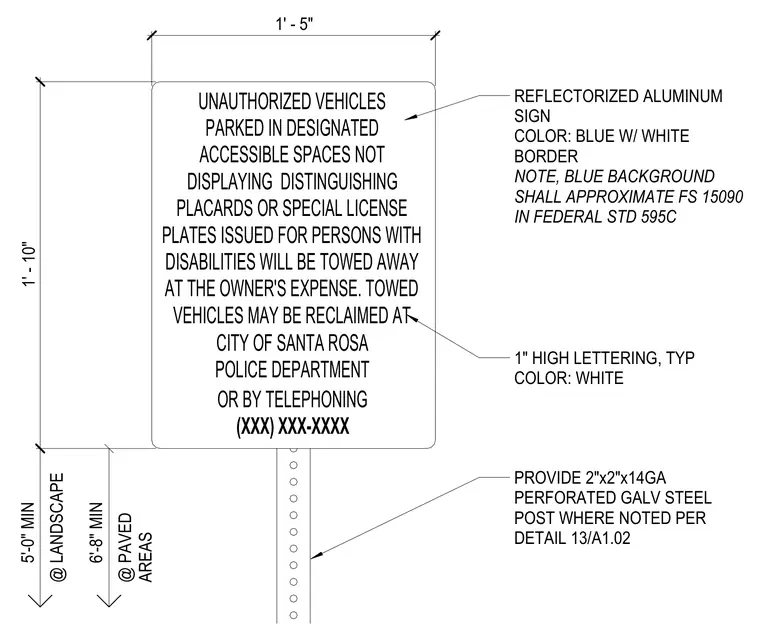

The reflectorized aluminum sign features a blue background matching Federal Standard 595C color FS 15090 with a white border and one-inch high white lettering detailing towing enforcement and police department contact information. It is supported by a 2-inch by 2-inch fourteen-gauge perforated galvanized steel post. Minimum clearance heights are established at five feet in landscape areas and six feet eight inches in paved areas.
1' - 10" 1' - 5" UNAUTHORIZED VEHICLES PARKED IN DESIGNATED ACCESSIBLE SPACES NOT DISPLAYING DISTINGUISHING PLACARDS OR SPECIAL LICENSE PLATES ISSUED FOR PERSONS WITH DISABILITIES WILL BE TOWED AWAY AT THE OWNER'S EXPENSE. TOWED VEHICLES MAY BE RECLAIMED AT PROVIDE 2"x2"x14GA PERFORATED GALV STEEL POST WHERE NOTED PER DETAIL 13/A1.02 1" HIGH LETTERING, TYP COLOR: WHITE REFLECTORIZED ALUMINUM SIGN COLOR: BLUE W/ WHITE BORDER NOTE, BLUE BACKGROUND SHALL APPROXIMATE FS 15090 IN FEDERAL STD 595C CITY OF SANTA ROSA POLICE DEPARTMENT OR BY TELEPHONING (XXX) XXX-XXXX 5'-0" MIN @ LANDSCAPE 6'-8" MIN @ PAVED AREAS
