About this detail

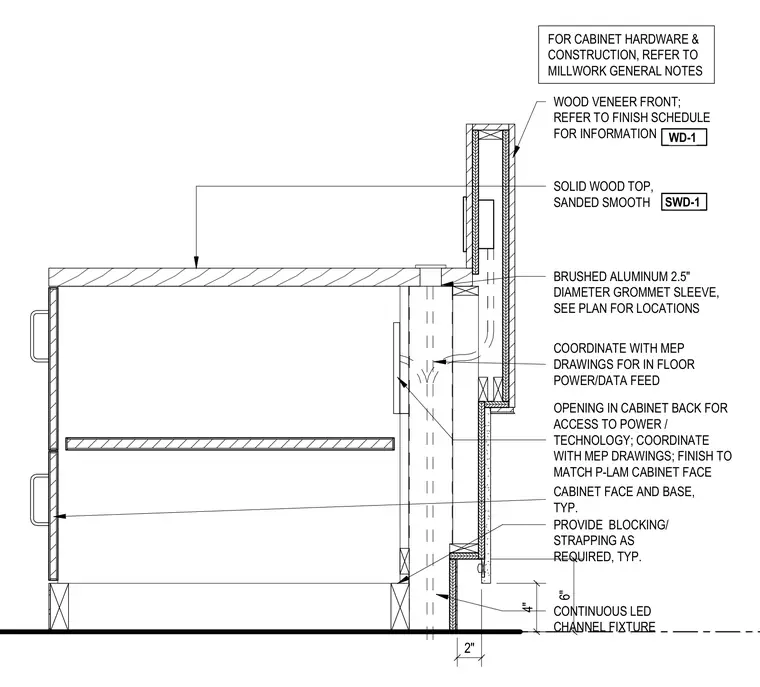

This casework detail constructs a reception desk assembly with a solid wood top finished smooth, paired with wood veneer front panels designated as WD-1 and SWD-1. Internal framing requires wood blocking and strapping provided as necessary. A 2.5-inch diameter brushed aluminum grommet sleeve accommodates wire management, coordinating with MEP drawings for in-floor power and data feeds. Openings in the cabinet back allow technology access, while a continuous LED channel fixture illuminates the base.
