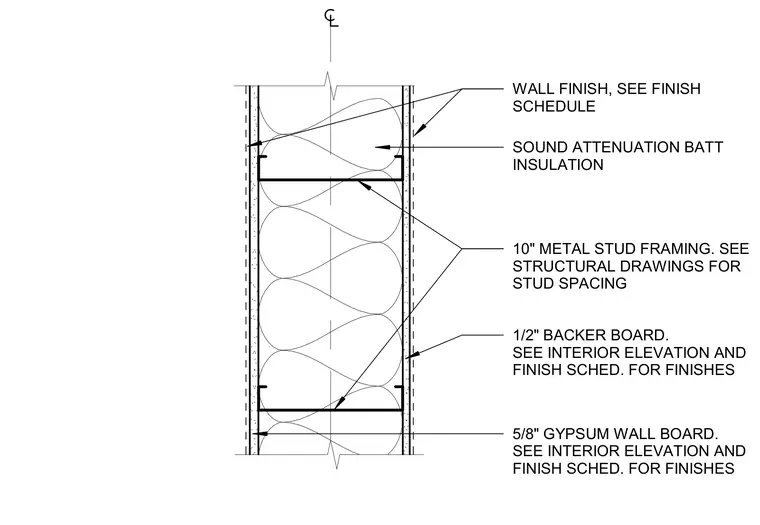

Ten-inch cold-formed metal stud framing forms the core of the partition wall, with stud spacing coordinated per structural drawings. Sound attenuation batt insulation fills the stud cavity. Five-eighths-inch gypsum wall board is fastened to the framing faces, with one-half-inch backer board applied where indicated for finishes per the interior elevation and finish schedule. A designated wall finish is applied to the exterior face.
10" METAL STUD FRAMING. SEE STRUCTURAL DRAWINGS FOR STUD SPACING SOUND ATTENUATION BATT INSULATION 5/8" GYPSUM WALL BOARD. SEE INTERIOR ELEVATION AND FINISH SCHED. FOR FINISHES 1/2" BACKER BOARD. SEE INTERIOR ELEVATION AND FINISH SCHED. FOR FINISHES WALL FINISH, SEE FINISH SCHEDULE
