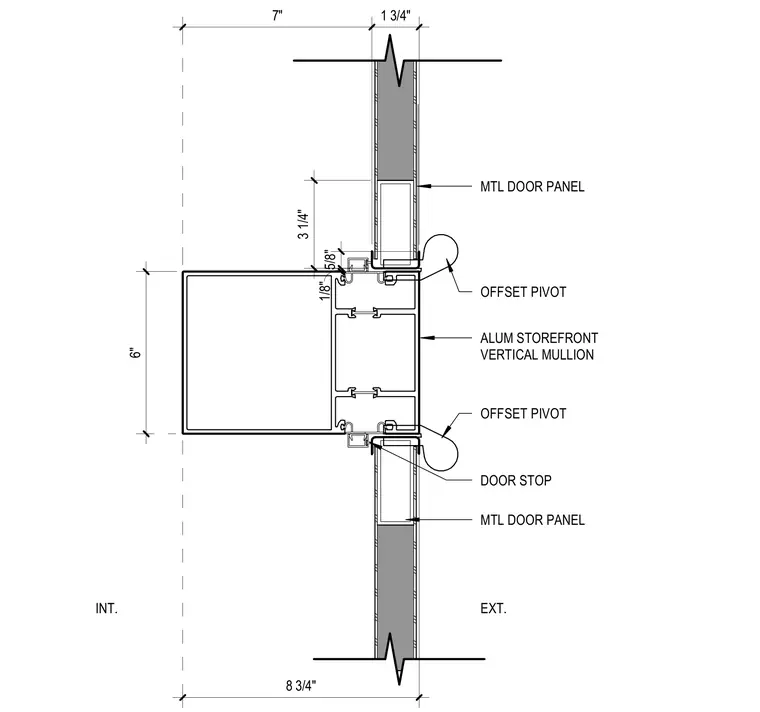

An aluminum storefront vertical mullion frames a metal door panel assembly at the jamb condition. The assembly features an offset pivot hinge and integrated door stop running vertically between the exterior and interior zones. Dimensions indicate a 6-inch mullion depth, 1-3/4-inch door panel thickness, and specific clearances including a 5/8-inch offset and 1/8-inch stop reveal.
MTL DOOR PANEL ALUM STOREFRONT VERTICAL MULLION MTL DOOR PANEL 6" 5/8" 1/8" 3 1/4" 7" 1 3/4" OFFSET PIVOT DOOR STOP EXT. INT. 8 3/4" OFFSET PIVOT
