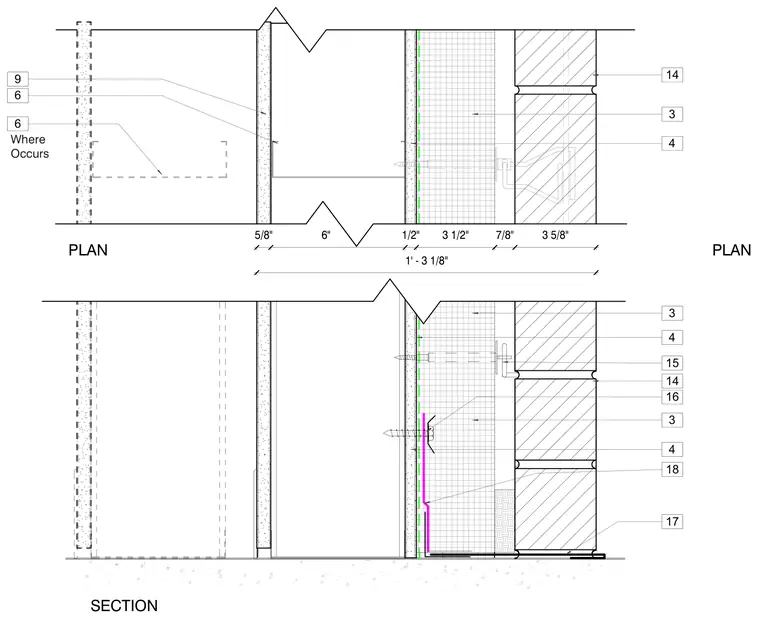

Stone veneer attaches with ties across a cavity and air-water barrier over exterior sheathing and framing. Continuous insulation and interior gypsum board complete the multi-wythe wall assembly.
PLAN SECTION PLAN 5/8" 6" 1/2" 3 1/2" 7/8" 3 5/8" 1' - 3 1/8" 14 3 4 6 9 14 3 4 15 16 17 18 3 4 6 Where Occurs
