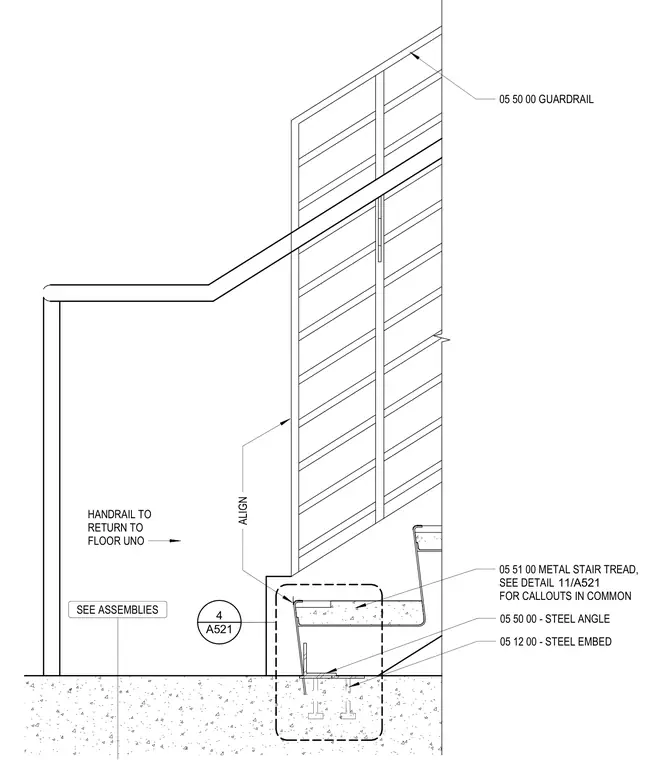

The base of the stair terminates with a metal stair tread supported by a steel angle secured to a structural steel embed plate at the floor level. A guardrail assembly aligns with the stair stringer and features a handrail that returns to the floor as specified. Structural connections are detailed per applicable metal fabrications specifications, coordinating the stair stringer base with the floor construction.
05 51 00 METAL STAIR TREAD, SEE DETAIL FOR CALLOUTS IN COMMON 05 50 00 GUARDRAIL ALIGN HANDRAIL TO RETURN TO FLOOR UNO SEE ASSEMBLIES 05 12 00 - STEEL EMBED 05 50 00 - STEEL ANGLE 11/A521 A521 4
